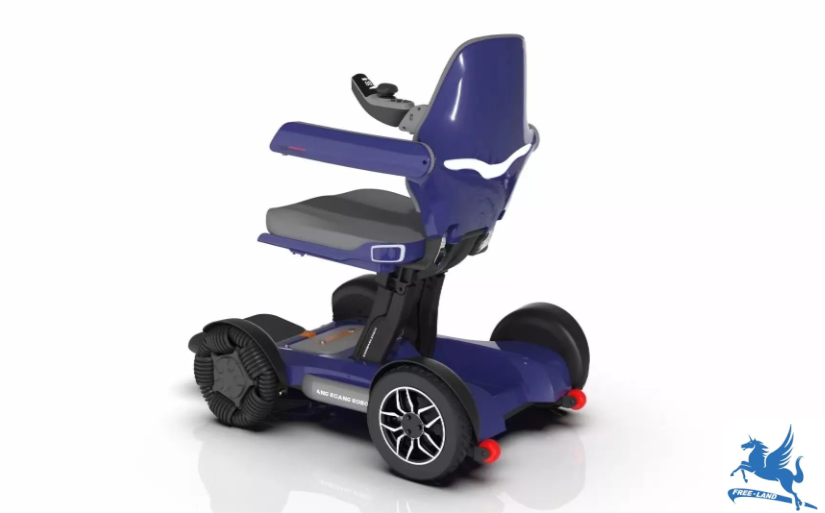

Freeland Robot Wheelchair R1 Auto Foldable
Suspension system and stablization system
€2995.00
Description
AL-R1 (Motor 200W X 2 / 20Ah Lithium) | ||||
Parameter | ||||
No. | Configuration | Item | ||
1 | Parameter | Folding mode | electric & automatic | |
2 | body net weight | 37.2kg | ||
3 | range | 25km | ||
4 | battery capacity | 20ah | ||
5 | Body size | 1005 590 930mm | ||
6 | folding size | 830 590 370mm | ||
7 | Package size | 930 710 450mm | ||
8 | front wheel | 10 inch omnidirectional wheel | ||
9 | rear wheel | 10 inch inflatable wheel | ||
10 | Suspension | independent suspension | ||
11 | maximum speed: | 6km/h | ||
12 | Obstacle crossing height | 60mm | ||
13 | ditch crossing width | 10cm | ||
14 | maximum load bearing | 120kg | ||
15 | Chassis clearance | 60mm | ||
16 | minimum turning radius | 730mm | ||
17 | sitting height x width x depth | 52cm x 52cm x 52cm | ||
18 | Cushion size | 42x42cm | ||
19 | Climbing angle | 10 degree | ||
20 | Slope angle | 15 degree | ||
R1 has below Advantages | ||||
1. auto-foldable; 2. humanization and aesthetic design; 3. light weight; 4. high climbing capacity; 5. all directions; 6. suspension system and stablization system; 7. remote control. 8. high strength integrated chasis | ||||
